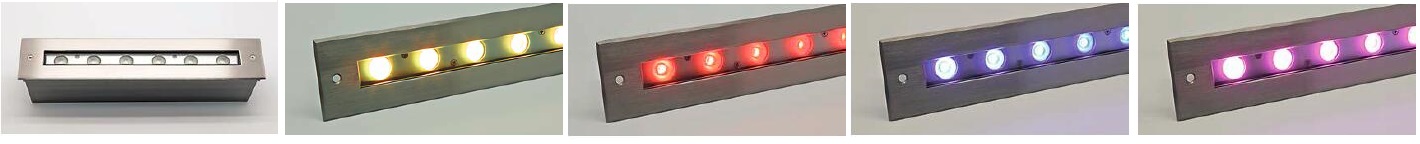

B2FL0657 B2FL0618 24VDC 6 * 2W CRI 80 Linear LED Inground Light Wall Washer Lamp With Symmetrical Light Output

Product Categories

COMI LIGHTING LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

B2FL0657 B2FL0618 24VDC 6 * 2W CRI 80 Linear LED Inground Light Wall Washer Lamp With Symmetrical Light Output

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	B2FL0657, B2FL0618(RGB)
Certification :	CE, ROHS, ETL, UL, SAA
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000PCS per month
Delivery Time :	5~15 working days

Add to Cart

Product Details
Company Profile

B2FL0657 B2FL0618 24VDC 6 * 2W CRI 80 Linear LED Inground Light Wall Washer Lamp With Symmetrical Light Output

B2FL0657, B2FL0618(RGB) 24VDC or 110-240VAC Input 6 * 2W Recessed LED Linear Inground Wall Washer Lamp with Symmetrical Light and PVC mounting Sleeve

The COMI Lighting INGROUND LINEAR series is designed for floor integration and offers various design possibilities in architectural illumination. it is dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by power supplies+controllers. It is simplified install by PVC plastic mounting sleeve(included).

Features and Benefits:

1. Linear inground light: Rectangle 316 stainless steel front cover and Die-casting aluminum lamp housing;

2. Working voltage: low voltage 24VDC or 110 - 240VAC wide range high voltage for world wide use;

3. 6pcs 2W or 3W high power LED with high lumen output

4. High voltage version is with internal driver (old version is external driver)

5. PVC mounting sleeve and easy install

6. Full area=3251kgs Glass pressure capacity

Material specifications:

Housing:	12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B.
Front Plate:	Stainless steel SUS 316L#
Glass pressure capacity	Full area=3251kgs
Lens	Symmetrical optical lens, efficiency≥85%
Glass	Step tempered glass. T=8mm
Cable gland:	IP-68 PG-9 PVC
Gasket:	Tooling shaped silicone seal
PCB	Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk
LED:	Osram or Cree High Power LED
Driver:	Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output
Operating temperature:	-20℃~40℃
Power cable:	H05RN-F 2X1.0mm² L=0.5m(low voltage) H05RN-F 3X1. 0mm² L=0.5m(high voltage) H05RN-F 4X0.75mm² L=0.5m(for 24VDC RGB)
Mounting sleeve:	PVC

Technical Information:

Item No.

Light source

Lens Type

Beam

Angle

(°)

Input

voltage

(V)

Typical operating

current (mA)

Typical

consumption

(w)

Typical

Luminance

(lm)

IK
rate

B2FL0657

6×2W

Osram LED

B27

25°

24VDC Or

120 /240

24V=437
120V=100
240V=57

24V=10.5
120V=11.8
240V=12.1

Cool white=1100
Warm white=733

B2FL0618

6×3W

3-in-1 RGB

LED

30°

24VDC

R=200
G=250
B=250

340

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
