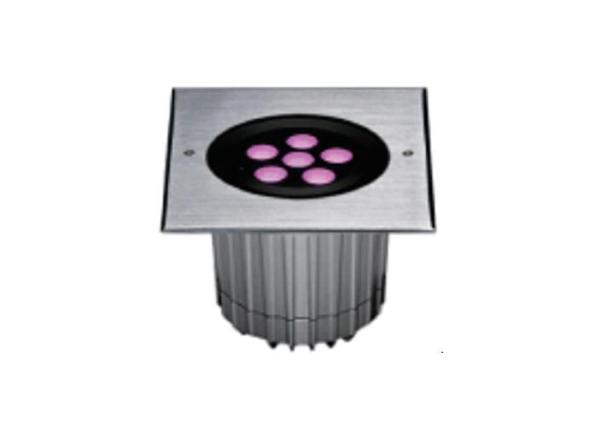

6 * 2W or 3W Sqaure Front Cover LED Up Light Inground Light Mounting Sleeve Included

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	FB2BFS0657, FB2BFS0618 (RGB)
Certification :	CE, RoHs, ETL, saa
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000pcs per month
Delivery Time :	5 - 15 Working Days

Add to Cart

Product Details
Company Profile

6 * 2W or 3W Sqaure Front Cover LED Up Light Inground Light Mounting Sleeve Included

FB2BFS0657, FB2BFS0618 (RGB) 24VDC or 110 - 240VAC 6 * 2W or 3W Sqaure Front Cover LED Up Light Inground Light Mounting Sleeve Included

Features and Benefts:

1. 173mm*173mm Big size front cover and made of 316 stainless steel;

2. World-Well known LED brands: Osram/Citizen/CREE/PROLIGHT/EPISTAR and etc

3. 8mm thickness Step tempered clear glass and 2274kgs Glass pressure capacity

4. Dimming options by: 0-10V, DALI, PWM and etc;

5. Lamp body is made of die cast aluminum helps fast heat dissiption

6. Easy to install by PVC mounting sleeve

7. Low power consumption, energy and cost saving

8. IP67 rating desgin suitable for many outdoor lighting application.

Material Specification:

Housing	12 Die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
Front Ring	Stainless steel SUS 316L
Glass	Step tempered clear glass. T=8mm
Glass pressure capacity	Full area=2274kgs
Lens	Optical lens, efficiency≥85%
Cable gland	IP-68 PG-9 PVC
Gasket	Molding shaped silicone seal
LED	TO type power LED for RGB,single color is OSRAM
Driver	Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output
Operating temperature	-20℃~40℃
Power cable	H05RN-F 2X1.0mm² L=0.5m (low voltage) H05RN-F 3X1. 0mm² L=0.5m (high voltage) H05RN-F 5X0.5mm² L=0.5m (for RGB)
Mounting sleeve	PVC 016#

Technical Paramters:

Item No.

Light source

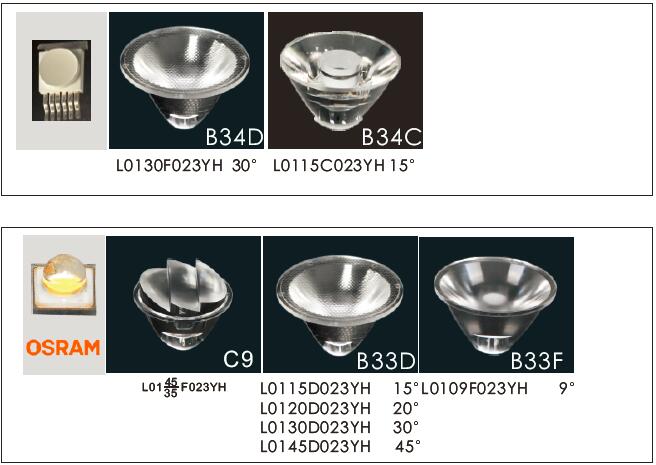

Lens

Types

Lens Beam

Angle(°)

Input

voltage

(V)

Typical operating

current (mA)

Typical

consumption

(w)

Typical

Luminance (lm)

IK
rate

FB2BFS0657

6×2W

Osram LED

B33D

20°

24VDC Or

120 /240

24V=562
120V=111
240V=64

24V=13.5
120V=13.1
240V=13.7

Cool white=956
Warm white=783

FB2BFS0618

6×3W

3-in-1 RGB

LED

B33D

30°

24VDC

R=200
G=250
B=250

16.8

300

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.

Outer Dimension (Units:mm)

Family Products:

Item No.	Light source	Lens Types	Lens Beam Angle(°)	Input voltage (V)	Typical operating current (mA)	Typical consumption (w)	Typical Luminance (lm)	IK rate
FB2BFR0657 FB2BFS0657	6×2W Osram LED	B33D	20°	24VDC Or 120 /240	24V=562 120V=111 240V=64	24V=13.5 120V=13.1 240V=13.7	Cool white=956 Warm white=783	07
FB2BFR0618 FB2BFS0618	6×3W 3-in-1 RGB LED	B33D	30°	24VDC	R=200 G=250 B=250	16.8	300	07
FC2BFR0657 FC2BFS0657	6×2W Osram LED	C9	45°\|45°	24VDC Or 120 /240	24V=562 120V=111 240V=64	24V=13.5 120V=13.1 240V=13.7	Cool white=956 Warm white=783	07

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
