C2WDR0157, C2WDR0118 (RGB) 24VDC or 110-240VAC 1 * 2 W IP67 Small Type 45° | 35° Asymmetrical Light Buried LED Inground Floor light

Features and Benefits:

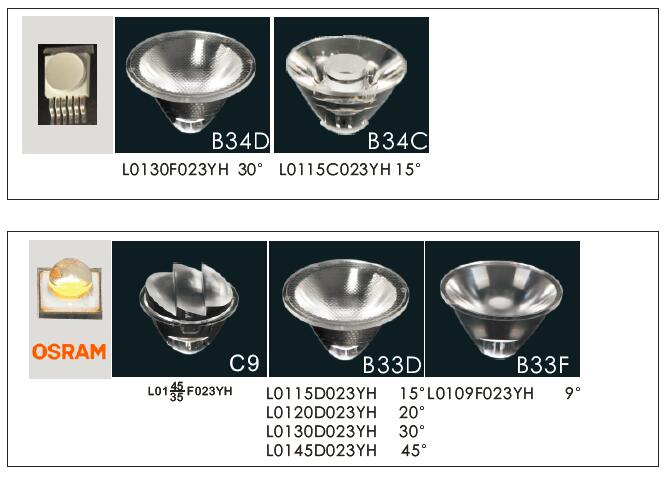

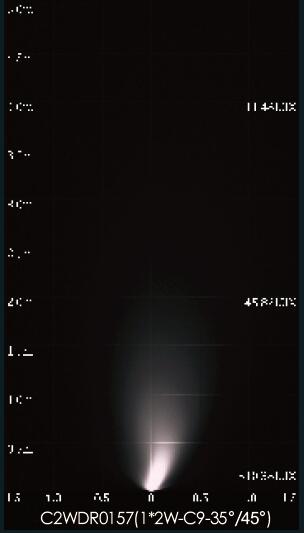

1. This series LED underground light uses 45° | 35° Asymmetrical optic lens and with Asymmetrical light output.

2. Small type lamp body

3. Floor recessed, ceiling recessed, buried or wall recessed installation way by spring or by PVC mounting sleeve;

4. Dimming by 0-10V, DALI, PWM protocols or others;

5. RGB color version can be controlled by RGB LED controller, or DMX+ DMX decoder

Material Specification:

General Information:

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.

2WD-Series Family Products:

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice

3. The first letter in part number stands for lens or glass types:

B stands for clear or Honeycomb lens symmetrical light

C stands for asymmetrical light

D stands for frosted/milk/white print lens with surface soft beam light
