1* 2W or 3W IP65 Recessed LED Step Lights Indoor 316 SUS Stainless Steel Front Plate

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	D1UA0102, D1UA0106 (RGB)
Certification :	CE, ROHS, ETL, ISO9001:2008
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000pcs per month
Delivery Time :	3 - 15 Working days

Add to Cart

Product Details
Company Profile

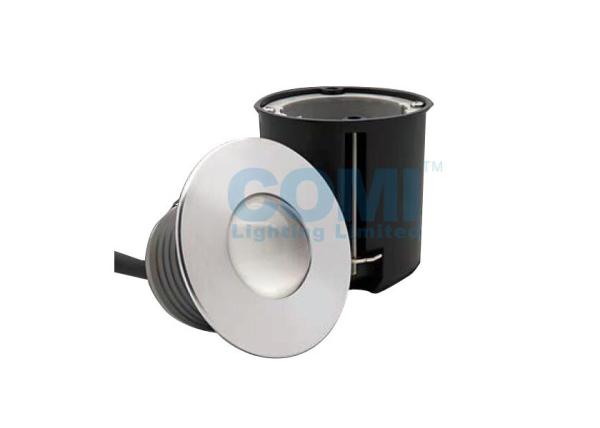

1* 2W or 3W IP65 Recessed LED Step Lights Indoor 316 SUS Stainless Steel Front Plate

D1UA0102, D1UA0106 (RGB) 24VDC or 110 - 240VAC 1 * 2W or 3W Recessed LED wall / Recessed Outline Lights, LED Step Lights

COMI Lighting WALL LIGHT D1UA-Series is designed for wall or ceiling integration and offers various design possibilities in architectural illumination.The DC24V working voltage version can be dimmable, autom. colour change(RGB or RGBW versions),or DMX 512, DALI, 1-10 V controllable by power supplies drivers or LED controllers(Inquire us separately), Installation with clips, fix on the ceiling and with mounting sleeve in thick wall.

Material Specification:

Housing:	12'' Die-casting aluminum, T=20-25μm. Adhesion of ISO class 1/ ASTM class 4B high temperature painting
Front Ring:	Stainless steel SUS 316#
Light Source:	Osram or Cree High power LED
Waterproof seal:	Rubber seal
Driver:	Low & High Input-Voltage Driver Inside
Operating Temperature:	-20-40 degree Celsius
Power Cable:	H05RN-F 3X1.0mm^2 L=0.3m (High Voltage) H05RN-F 2X0.75mm^2 L=0.3m (Low Voltage) H05RN-F 3X0.75mm^2 L=0.3m (RGB,low voltage) H05RN-F 4X0.5mm^2 L=0.3m (RGBW,low voltage)
Mounting Sleeve:	PVC 035# Plastic Mounting Sleeve
IP Rating:	IP65
Certificates:	CE, RoHs

Techincal Information:

Item Number	Light Source	Beam Degree (°)	Input Voltage (V)	Typical Operating Current (mA)	Typical Consumption (W)	Typical Luminance (lm)	IK Rate
D1UA0102	1×3W	45°	24V DC 120/240	24V =110 120V=48 240V=28	24V =2.6 120V=3.1 240V=3.0	Cool white=31 Warm white=27	09
D1UA0106	1×3W 3-in-1 RGB Full Color	45°	24V DC	R=38 G=53 B=54	3.5	46	09
D1UA0107	1×4W 4-in-1 RGBW Full Color	45°	24V DC	180	4.3	RGBW=72	09

Note:

1. Single color: Warm White(3000~3500K), Neutral White(4000~4500K), Cool White (6000~6500K), Red, Green, Blue;
2. Specification and availability are subjected to change without notice.

Outer Size (mm):

Installation:

Installation with clips, fix on the ceiling and with mounting sleeve in thick wall.
