24V low voltage or 110~240VAC Linear Stair Outdoor Lighting White Print Glass Soft Beam 195mm

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	D1FL1014, D1FL1015 (RGB)
Certification :	CE, ROHS, ETL
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000pcs per month
Delivery Time :	3 - 15 Working Days

Add to Cart

Product Details
Company Profile

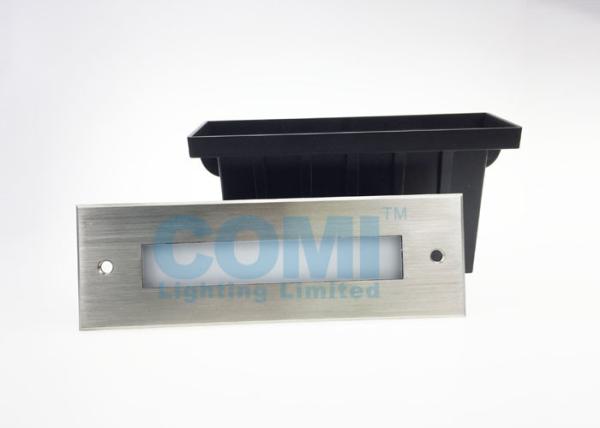

24V low voltage or 110~240VAC Linear Stair Outdoor Lighting White Print Glass Soft Beam 195mm

D1FL1014, D1FL1015 (RGB) 24V or 110~240VAC 10pcs * SMD LED White Print Glass Soft Beam 195mm * 65mm Linear Step Wall Lights IP65 Install by Black PVC Mounting Sleeve

The COMI Lighting WALL LIGHT D1FL-Series is designed for wall or step integration and offers various design possibilities in architectural illumination.With 24VDC or 110-240VAC input, and the low voltage 24VDC versions can be dimmable or DMX 512, DALI, 1-10 V controllable by power supplies,drivers or controllers. COMI Lighting provide frosted or white print cover glass options for soft beam D1FL-series step wall light. Simplified install by PVC plastic mounting sleeve(included).

Features and Benefits:

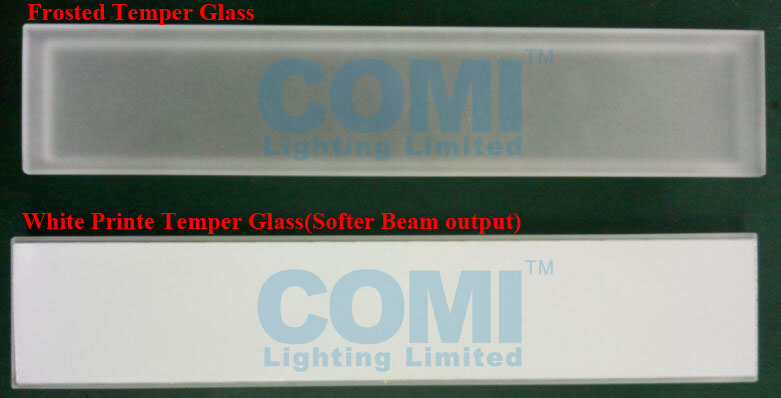

1. White Print temper glass to make the linear wall lights with more softer beam output;

2. Dimming controlled by DALI, 1 - 10 V, PWM and etc;

3. Simplified install by PVC plastic mounting sleeve

4. Stainless steel SUS 316L# front plate;

5. Outdoor rated IP65 design

6. Whole fitting power consumption is 2.4~6W, Bright and energy saving.

7. Perfect heat conduction and heat cooling construction,Keep LED work longer.

8. 60% luminous flux assured after operating for 20,000 hours.

Material specifications:

Housing:	12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B.
Front Plate:	Stainless steel SUS 316L#
Glass	Frosted step tempered glass. T=8mm
Cable gland:	IP-67 PG-9 PVC
Gasket:	Tooling shaped silicone seal
LED:	SMD5050 LED or 2835 LED
Driver:	Constant current output
Operating temperature:	-20℃~40℃
Power cable:	H05RN-F 2X1.0mm² L=0.5m(low voltage) H05RN-F 3X1. 0mm² L=0.5m(high voltage) H05RN-F 4X0.75mm² L=0.5m(for RGB)
Mounting sleeve:	Standard PVC (Included)

Technical Information:

Item No.

Light source

Degree

(Θ 1 / 2 )

Input

voltage

(V)

Typical operating

current (mA)

Typical

consumption

(w)

Typical

luminance

(lm)

rate

D1FL1014

10×SMD5050

24VDC Or

120 /240

24V=100

120V=62

240V=31

24V=2.4W

120V=3.7W

240V=3.7W

Cool white=18

Warm white=15

D1FL1015

10×SMD5050

RGB 3IN1

Full color

24VDC

R=38

G=38

B=38

2.7W

4.8LM

Note:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately

Dimensional Drawing(mm):
