CL-SS2835XX60-P1-A 12VDC or 24VDC 60LEDs / M High Output 2835 LED
10mm Width Flexible Strip Light CRI80 14.4W/m 5Meters per Reel
Class-A 2835 LED strip light,integrating high performance and
innovative technology in a professional grade low profile lighting
solution,provides accent light with various color and is great for
use in architectural enhancements, letter sign, coving, under/above
cabinet, back lighting, luxury residential & commercial spaces and
other discreet location.
Features and Benefits:
● LED Source: Top 2835 SMD LED Diode,60LEDs/m (300LEDs per standard
reel--5meters);
● Materials for LED: Epistar LED chips , Mitsubishi phosphor
powder, 0.9mil gold thread with 99.99% purity;
● Luminous Flux: standard 20~25lm/LED;
● Power Consumption: Max. 14.4W/m;

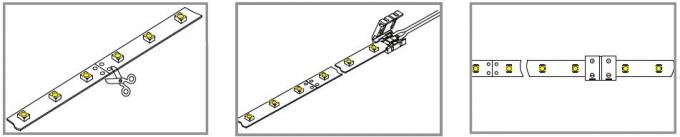

● Cuttable: May be field cut every 50mm(3LEDs) for 12V or
100mm(6LEDs) for 24V at regular intervals without damage the rest
of strip;
● Dimmable: Smooth and Continuous ELV dimming with Electronic Low
Voltage dimmer;
● Colour Temperature Available:
(1) White Color: 2700K Warmer White ( +/- 100K), 3000k Warm White (+/- 100k),
4000k Natural White (+/- 200k), 6000k Cool White (+/- 200k) – 3
SDCM on all white colours
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm),
Yellow (YL, 588~592nm).
● CRI 80 standard or high CRI 90+ ;
● Standard length: 5meters per reel;
● Max length per run recommendation: 5meters;
● Certificates: CE, RoHs,REACH,UL (or ETL) listed;
● Warranty: 3 Years warranty
General Information:
| Part Number | LED Type | Color | LED No. | Operating Voltage | Power
(W/m) | Luminous Flux
(lm/LED) | FPC width
(mm) | Max. run length (m) | View Angle | IP Rating | CRI (Ra) |
| CL-SS3528XX60-P1-A | 2835LED | WW/NW/CW | 60LEDs/m | 24VDC
(Or 12VDC) | Max. 14.4W/m | 20~25 lm/LED | 10mm | 5meters | 120° | IP20 | Ra>80 |
Notes:
1."XX" in part number stands for the LED emitting color,Kelvin or
Wave length for above LED emitting color:
(1) Warm white (WW, 3000~3500K[standard] or 2500~3000K), Neutral
White (NW, 4000~4500K), Cool White (CW, 6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm),
Yellow (YL, 588~592nm);
2.CRI>70,80 or 90+ are available;
3.Specification and availability are subjected to change without
notice；
4. For rating IP65,IP67,IP68 versions , please inquire us
separately.(what is name methods for difference IP rating LED
Strip in COMI Lighting?
Dimension(Units:mm)
