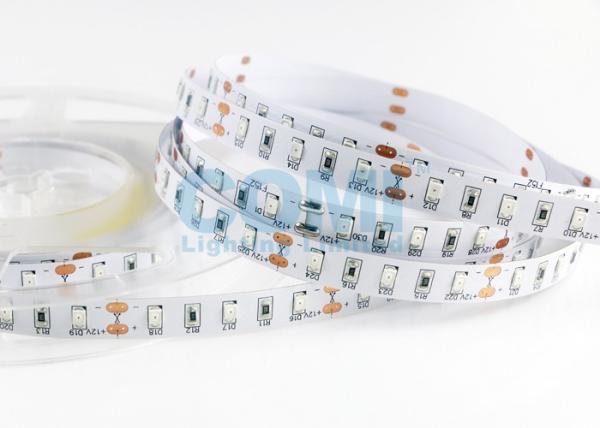

CL-SS2835RD60-P1 12VDC or 24VDC 60LEDs / M Red Color 2835 SMD LED
Flexible Strip Lights 14.4W / M 10MM FPC, CE/ ROHS/ REACH
LED strip light is a perfect and professional grade low profile
lighting solution for your LED linear lighting demands, this
dimmable, energy saving, simplified installation and very low
profile LED linear tape light is excellent for use in many discreet
locations and architectural enhancements, letter sign, coving,
under/above cabinet, back lighting, luxury residential & commercial
spaces.
Features and Benefits:
1. Input Voltage: 12V or 24v D.C.
2. Wattage Per Meter: max14.4w/Mtr
3. LED Chip: 2835SMD LED chip with 120 Beam Angle
4. Colour Temperature Available: 2700K Warmer White ( +/- 100K),
3000k Warm White (+/- 100k), 4000k Natural White (+/- 200k), 6000k
Cool White (+/- 200k), Red (620-630nm), Green (520-525nm), Blue
(450-455nm),Yellow (588-592nm).
5. Lifetime: 70% Lumen Maintenance @ 30,000 hours
6. IP Rating Available: IP20
7. Construction: Flexible white FPCB with rolled copper for long
life with 60pcs LED’s spaced evenly per meter.
8. Maximum Run With One Tail Feed: Advised no more than 5meters in
a continuous length from one power feed
9. Cutting: May be field cut every 50mm(3LEDs) for 12V or 100mm(6LEDs)
for 24V at regular intervals without damage the rest of strip light
10. Connection: Easy connect push fit connectors for cutting and
joining.
11. Smooth and Continuous ELV dimming with Electronic Low Voltage
dimmer
12. Color uniform: Strict binning controls provide consistent LED
color and quality of Light
Applications:
1. Cove lighting;
2. Decoration of the furniture;
3. decoration for the ceiling lighting;
4. backlingting of the channel letter and lighting box;
5. Decoration for the events, show, exhibition, ect;
6. Decoartion for the market, super mall.
7. Stair, doorstep andskirting lighting;
Technical Specification:
| Part Number | Color | LED Type | LED Q'ty
(pcs/M) | Luminous Flux (LM/M) | Working Voltage | Power (W/M) | FPC Width | IP Rating |
| CL-SS2835RD60-P1 | Red 620-630nm | 2835 SMD LED | 60pcs/m | / | 12V or 24VDC | Max. 14.4W/M ±10% | 10mm | IP20 |
| CL-SS2835BL60-P1 | Blue 450-455nm | 2835 SMD LED | 60pcs/m | / | 12V or 24VDC | Max. 14.4W/M ±10% | 10mm | IP20 |
| CL-SS2835GN60-P1 | Green 520-525nm | 2835
SMD
LED | 60pcs/m | / | 12V or 24VDC | Max. 14.4W/M ±10% | 10mm | IP20 |
| CL-SS2835YL60-P1 | Yellow 588-592nm | 2835
SMD
LED | 60pcs/m | / | 12V or 24VDC | Max. 14.4W/M ±10% | 10mm | IP20 |
Notes:
1."XX" in part number stands for the LED emitting color,Kelvin or
Wave length for above LED emitting color:
(1) Golden Color (2000-2200K), Warm white (WW, 3000~3500K[standard]
or 2500~3000K), Neutral White (NW, 4000~4500K), Cool White (CW,
6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm),
Yellow (YL, 588~592nm);
2.CRI>80 or 90+ are available;
3.Specification and availability are subjected to change without
notice；
4. For rating IP65,IP67,IP68 versions , please inquire us
separately.(what is name methods for difference IP rating LED
Strip in COMI Lighting?
Dimensional Drawing (Unit:mm): L5000*W10*H2mm
