CL-TG001-200W 200W Bridgelux LED Tunnel Flood Lights 19459LM
with100 - 277VAC Mean Well Driver
Features:
1. Adopts 4pcs 50W High brightness and High CRI Brigdelux
integrated chip LED as its light source;
2. Eco-friendly: does not contain mercury, lead and other harmful
substances,No pollution to the environment;
3. Green Products: No infrared and ultraviolet.
4.The lamp body is made of High thermal conductivity aluminum with
excellent heat dissipation ability to ensure light with small
decline during long period.
5. Specially tempered safety glass and waterproof structure, lamp
protection grade reaches IP65;
6. Powered by Meanwell DC constant current driver(included), no
glare;
7. High power factor.
8. Simplified installation: With special install 180degree angle
adjustable angle.
Specification:
| Part Number | CL-TG001-200W |
| Rating Power(W) | 200W |
| Power Consumption | 200±15W |
| LED Driver Brand | Mean Well |
| Input Voltage | 100-240VAC |
| Working Current | DC 6000mA |
| LED Source | Epistar 35 mil /BRIDGELUX 45 mil
(Integrated Chip LED) |
| Flux(lm) | Warm White | Natural White | Cool White |
| 15000-17000lm | 18000-20000lm | 19000-21000lm |
| CRI(Ra) | ≥70 or ≥80 | ≥70 or ≥80 | ≥70 or ≥80 |
| Color Temperature | 2700~3300K | 4000~4500K | 6500~7000K |
| Power Factor | ≥0.9 |
| Light Effect | ≥0.9 |
| Beam Angle | 120Degree |
| IP Rating | IP65 |
Working Temperature
& Relative humidity | -35℃~60℃~/ R.H.≤85% |
| Material | Aluminum +Tempered glass |
| Tj | <65℃±10%(Ta=25℃) |
| LED Lifespan on Average | 50000hours |
| Wire lead | 1.0mm² three core wires, L=0.5Meter . (Brown wire-L,Blue wire-N,Yellow/Green-G) |
| Product Size | L383*W335*188mm |
| Net Weight | 8.3KGs/piece |
Product Details:
NOTE:

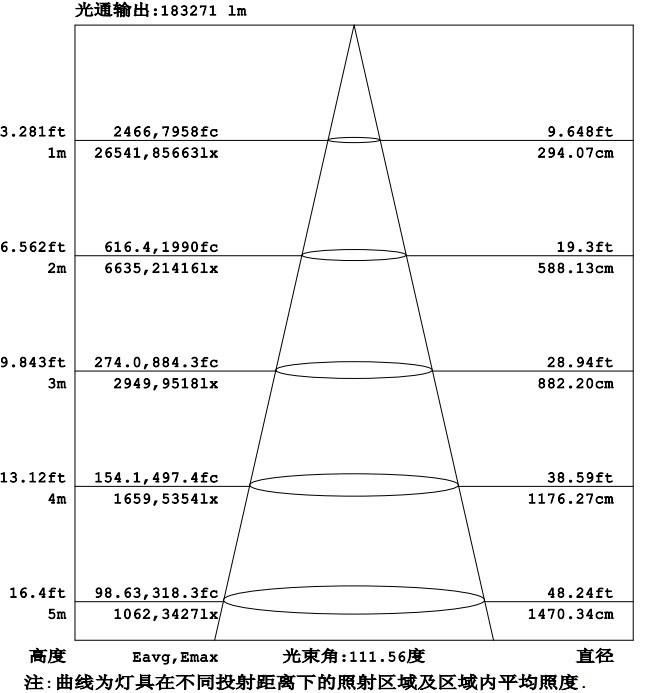

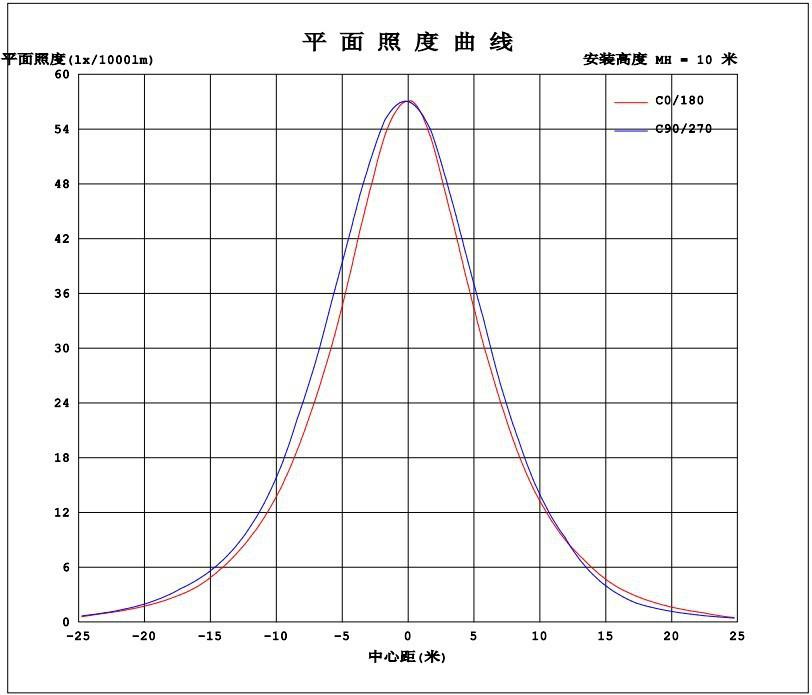

Please download the above test report to view large picture
clearly.
Inner box: L470*W420*H260mm, G.W.:9.5KGs/piece
Outer box(Carton):L856*W486*H280mm, 2pcs/carton, 19KGs
Installation:
Important Notes:
1. There are 3 wires in input cable for the lighting
fixture:Red--live wire,Blue--null line, Yellow--ground line;
2. The lighting fixture must be installed by a professional
electrician;
3. When connect the wires to the driver, please make sure to take
waterproof measures;
4. The lamps can not be used for any violation of fire prevention
law;
5. Please make sure to cut off the power before installation,
maintenance and repair;
6. Please follow the belows steps to install the lighting fixture,
and make sure the screws are fixed firmly and keep the lighting
fixture balance:
Installation steps:

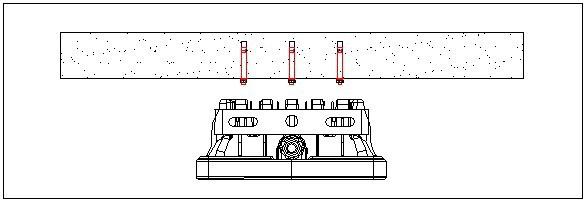

1. Please drill 3 holes Diameter Φ10mm and depth 100mm on mounting
place:
2. Please fix the M8*80mm expansion bolt into the holes and make
sure they are firmly mounted:
3. Please install the lighting fixture onto expansion bolt of the mounting surface and make sure the screws are screwed
firmly.

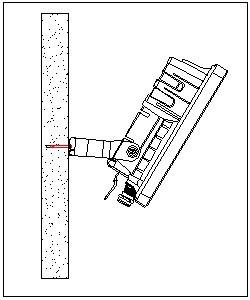

4. Please adjust the lighting fixture at the right angle and fasten
up. Then connect the power to the lighting fixture. Then the
lighting fixutre is finished installation.
Applications:
Applicable to the building facade, square, billboards, leisure
sports field, stage, rockery, bridge, building facades and outdoor
landscape lighting etc.
