    150W Bridgelux Integrated Chip LED Industrial Flood Lights For Architecture Lighting

    Ask Lasest Price
    Brand Name : COMI LIGHTING
    Model Number : TG001-150W
    Certification : CE,ROHS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000pcs per month
    Delivery Time : 3~18days
    • Product Details
    • Company Profile

    150W Bridgelux Integrated Chip LED Industrial Flood Lights For Architecture Lighting

    Technical Specification:


    Part NumberCL-FL-TG001-100WCL-FL-TG001-120WCL-FL-TG001-150W
    Rating Power(W)100W±10%120W±10%150W±10%
    LED DriverMeanwell IP67 LED Driver,90~305VAC input,Built-in active PFC function
    Input VoltageAC90V~265V,50/60HzAC90V~265V,50/60HzAC90V~265V,50/60Hz
    Working CurrentDC3000mADC3600mADC4200mA
    LED SourceBridgelux 45mil Integrated Chip High power LED
    LED Number2pcs*50W2pcs*60W2pcs*70W
    Flux(lm)8500~10000lm10200~12000lm12500~14000lm
    Luminous Efficiency>85lm/W>85lm/W>85lm/W
    ColorWW,NW,CWWW,NW,CWWW,NW,CW
    CRI(Ra)Ra>70Ra>70Ra>70
    Power Factor>0.9>0.9>0.9
    Beam Angle120 degree120 degree120 degree
    IP RatingIP65IP65IP65
    MaterialAluminum alloy+Temper glass
    Tj<65℃±10% (Ta=25℃)<65℃±10% (Ta=25℃)<65℃±10% (Ta=25℃)
    Working Temperature-35℃~60℃-35℃~60℃-35℃~60℃
    HumidityH.D.≤85%H.D.≤85%H.D.≤85%
    Wire lead3*1.0mm2 wires3*1.0mm2 wires3*1.0mm2 wires
    Wire connectionBrown wire-L(Live Wire),Blue wire-N(Null Line),Yellow/Green-G(Ground Lead)

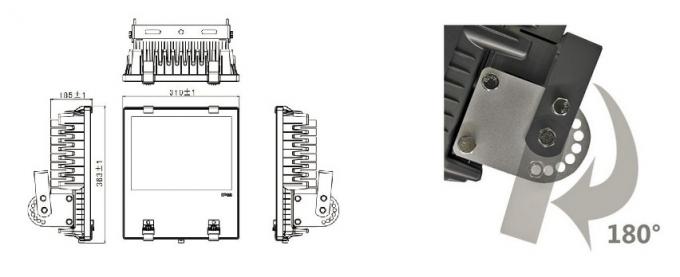

    Dimension(mm)341*250*116mm303*303*185mm363*310*185mm
    N.W.(KGs)9.2KGs9.5KGs9.8KGs
