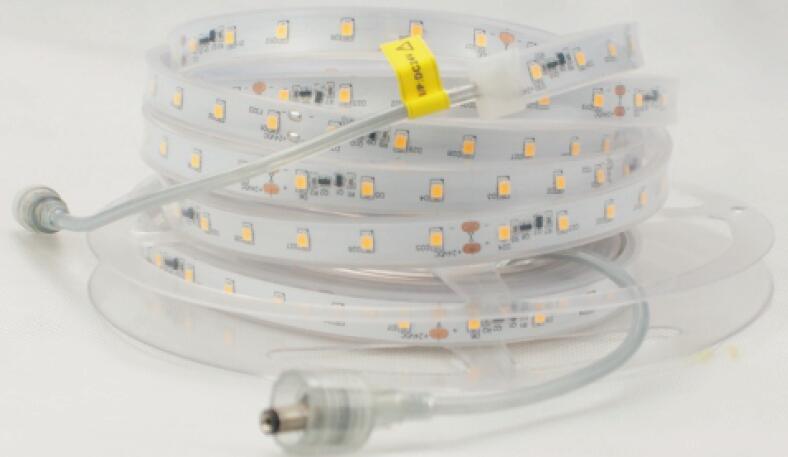

CL-SS2835XX60-CC-P4 24VDC Constant Current IC Driving 120LEDs/m
CRI80+ 2835 14.4W / M Flexible LED Strip Lights Sealed in Silicone
Tube IP67 Waterproof
Features and Benefits:
1. LED Control: On-board IC constant current controller,Super-wide
operating voltage range (22-26V):
This products adapts voltage ranging from 22V to 26V to keep the
LED strip at a constant constant current level.Working current of
the LEDs is automatically adjusted according to the ambient
temperature, ensuring a longer lifespan of the LEDs.
Constant current IC driving ensure Continuous run length10Meters
and uniform brightness from the start end to the tail end.
2. LED chip: Epistar 2835 LED chips with 120degree Beam Angle
3. CRI:Standard CRI:Ra>80 (High CRI>90 or 93+)
4. Input voltage:24VDC or 12VDC
5. Power: max 14.4W/m
6. IP Rating: IP67 Waterproof. The two ends of LED strip which
sealed by end caps CANNOT submerse into water.
7. Standard length: 5 meters per reel
8. Max run length:10meters per run (power feed to both ends of LED
Strip)
9. Mounting: All flexible products come with a high quality genuine
3M mounting tape.
10. Construction: Flexible white FPCB with rolled copper for long
life with 60 LED’s spaced evenly per meter.
11. Cuttable: May be field cut every 50mm(3LEDs) for 12VDC or 100mm(6LEDs) for
24VDC at regular intervals without damage the rest of strip light;
12. Dimmable: Smooth and Continuous ELV dimming with Electronic Low Voltage
dimmer;
13. Strict binning controls provide consistent LED color and quality of Light;
14. With waterproof IP67 DC jack connectors;
15. Warranty: 3 Years warranty.
General Information:
| Part Number | LED Type | LED Q'ty (pcs/m) | Operating Voltage | Power
(W/m) | Luminous Flux
(lm/LED) | FPC width
(mm) | Max. run length (m) | View Angle | IP Rating | CRI |
| SS2835XX60-CC-P4-CRI80 | 2835LED | 60 | 24VDC
(Or 12V) | Max. 14.4W/m | Standard Output 20-25lm/LED | 10mm | 10meters | 120° | IP67 | CRI>80 |
| SS2835XX60-CC-P4-CRI90 | 2835LED | 60 | 24VDC
(Or 12V) | Max. 14.4W/m | 16~20lm/LED | 10mm | 10meters | 120° | IP67 | CRI>90 |
Notes:
1."XX" in part number stands for the LED emitting color,Kelvin or
Wave length for above LED emitting color:
(1) Warm white (WW, 3000~3500K[standard] or 2500~3000K), Neutral
White (NW, 4000~4500K), Cool White (CW, 6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm),
Yellow (YL, 588~592nm);
2.CRI>80 or 90+ are available;
3. The lumen output of LED is inversely proportional to CRI, the
higher CRI is, the lower lumen output of LED is;
4.Specification and availability are subjected to change without
notice；
5. For rating IP65,IP67,IP68 versions , please inquire us
separately.(what is name methods for difference IP rating LED
Strip in COMI Lighting?
Dimensional Drawing (Units:mm):

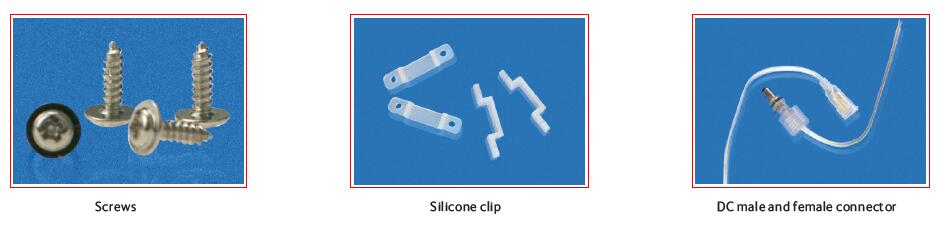

Accessories (Included in Pack)
