CL-SS2835XX60-TS-P1 24VDC(or 12V) CRI80+ or CRI 90+ 2835 60LEDs / M Temperature Sensing Constant Current Dimmable Flexible LED Strip Lights 14.4W/Meter 10mm width FPC

Features and Benefits:

1. LED Control: On-board IC constant current controller with temperature sensor.

(1) Intelligent temperature control and protect the LED Strip:

The product is updated with temperature sensor. Based on 25°C, it can automatically adjust the LED current according to the change of environmental temperature.The working current will decrease when temperature rises, and increase when temperature reduces. The adjustment rate for current is ±20%, while the brightness remains the same from the start end to the tail end.

When the working temperature less than 50°C, the strip will be at 100% brightness, when the working temperature more than 50°C, the temperature sensor will reduce the working current for the LED strip to enable the working temperature reduce and no more than 50°C. When the temperature is too hot and more than 50°C and such as reach 70°C, the LED strip will be turned off until the working temperature around 50°C.

(2) Super-wide operating voltage range (22-26V):
This products adapts voltage ranging from 22V to 26V to keep the LED strip at a constant constant current level.Working current of the LEDs is automatically adjusted according to the ambient temperature, ensuring a longer lifespan of the LEDs.

(3) Constant current IC driving ensure Continuous run length10Meters and uniform brightness from the start end to the tail end.

2. LED chip: Epistar 2835 LED chips with 120degree Beam Angle

3. CRI:Standard CRI:Ra>80 (High CRI>90 or 93+)

4. Input voltage:24VDC or 12VDC

5. Power: max 14.4W/m

6. IP Rating: IP20 nonwaterproof

7. Standard length: 5 meters per reel

8. Max run length:10meters per run (power feed to both ends of LED Strip)

9. Mounting: All flexible products come with a high quality genuine 3M mounting tape.

10. Construction: Flexible white FPCB with rolled copper for long life with 60 LED’s spaced evenly per meter.

11. Cuttable: May be field cut every 50mm(3LEDs) for 12VDC or 100mm(6LEDs) for 24VDC at regular intervals without damage the rest of strip light;
12. Dimmable: Smooth and Continuous ELV dimming with Electronic Low Voltage dimmer;
13. Strict binning controls provide consistent LED color and quality of Light;

14. Warranty: 3 Years warranty.

General Information:

Notes:

1."XX" in part number stands for the LED emitting color,Kelvin or Wave length for above LED emitting color:
(1) Warm white (WW, 3000~3500K[standard] or 2500~3000K), Neutral White (NW, 4000~4500K), Cool White (CW, 6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm), Yellow (YL, 588~592nm);
2.CRI>80 or 90+ are available;

3. The lumen output of LED is inversely proportional to CRI, the higher CRI is, the lower lumen output of LED is;
4.Specification and availability are subjected to change without notice；
5. For rating IP65,IP67,IP68 versions , please inquire us separately.(what is name methods for difference IP rating LED Strip in COMI Lighting?

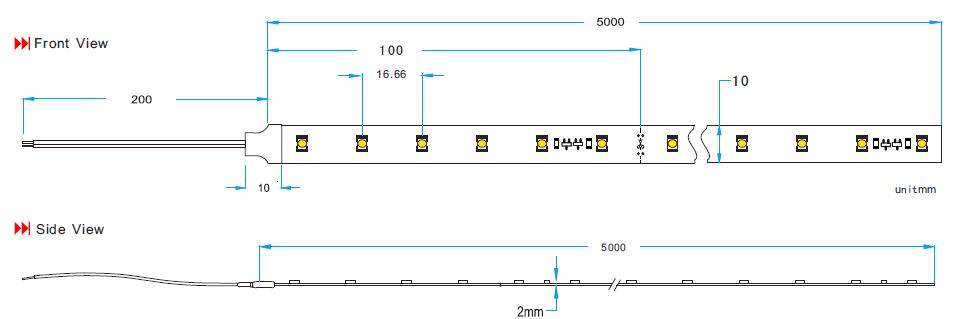

Dimensional Drawing (Units:mm)

Cutting and Connection:
