    3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function

    CL-LT-924-OLED 3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function, Support 4 kinds of DMX ports with Signal Isolation Function: 3-pin XLR, 5-pin XLR,RJ45 and Green Terminal (with signal amplifier function)


    Product Introduction:
    1. Designed for Hi-power multiple channels application,24 channels output, and Max. 3A current per channel, up to 1728W output power.
    2. Easy operation with OLED screen and the touch buttons.
    3. 5 kinds of mode optional: single color, color temperature, RGB.
    Support 3 kinds of DMX ports with signal isolation function:5-pin XLR,RJ45, green terminal (with signal amplifier function).
    4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
    5. With photoelectric isolation function.
    6. With shortcut protection and over load protection, as well as warning function when fault.
    7. With fast self-testing function.
    8. 16bit / 8bit resolution optional.
    9. Multiple dimming curve (0.1~9.9) optional.


    Technical Specs:
    nput signalDMX512/RDM
    Input voltageDC12V~DC24V
    Max load current3A ×24CH Max. 72A
    Max output power(0~36W...72W) x24CH Max.1728W
    DMX512 socketXLR-5, RJ45, Green Terminal
    Control modeDIM/CT/RGB
    DIM Curve0.1~9.9
    Gray scale level8bit(256 levels)/16bit(65536 levels)
    Photoelectric IsolationYes
    Working temperature-30℃~65℃
    DimensionL300×W122×H39(mm)
    Package SizeL309×W127×H41(mm)
    Weight (G.W)1200g

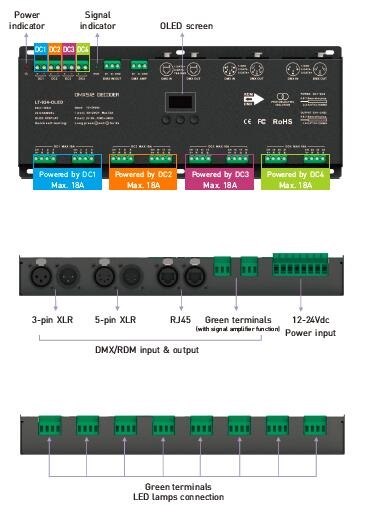

    Outer Size(mm):




    Multiple dimming curve ( 0.1~9.9) optional:

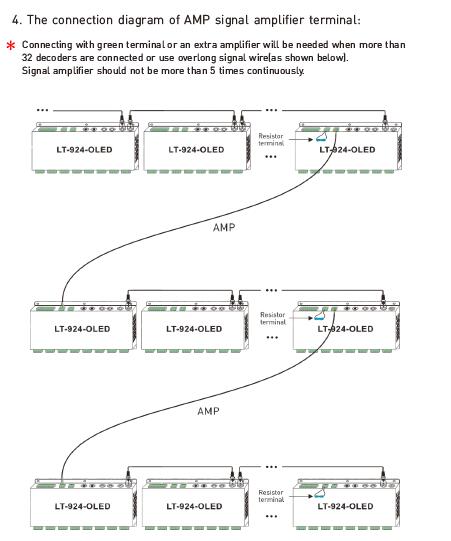

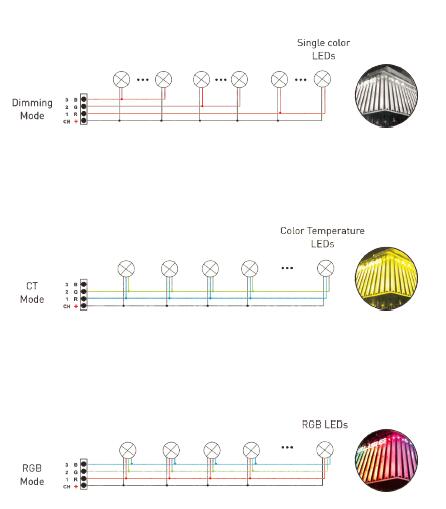

    Typical Wiring Digaram:
