6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional

    Buy cheap 6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional from wholesalers

    Buy cheap 6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional from wholesalers
    • Buy cheap 6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional from wholesalers
    • Buy cheap 6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional from wholesalers
    • Buy cheap 6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional from wholesalers

    6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional

    Ask Lasest Price
    Brand Name : LT-Series
    Model Number : CL-LT-955-OLED
    Certification : FCC, CE, ROHS, ISO 9001:2008
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100000pcs per month
    Delivery Time : 3~12 Days
    • Product Details
    • Company Profile

    6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional

    CL-LT-955-OLED 6A * 5Channels CV DMX Decoder Up to 720W Output Power Input DMX512 / RDM


    Product Introduction:
    • Designed for Hi-power multiple channels application,5 channels output, and Max. 6A current per channel, up to 720W output power.
    • Easy operation with OLED screen and the touch buttons.
    • 5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.
    • Support 3 kinds of DMX ports with signal isolation function:5-pin XLR,RJ45, green terminal.
    • With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
    • With photoelectric isolation function.
    • With shortcut protection and over load protection, as well as warning function when fault.
    • With fast self-testing function.
    • 16bit / 8bit resolution optional.
    • Multiple dimming curve (0.1~9.9) optional.

    Technical Specs:
    nput signalDMX512/RDM
    Input voltageDC12V~DC24V
    Max load current6A ×5CH Max. 30A
    Max output power(0~72W...144W) x5CH Max.720W
    DMX512 socketXLR-5, RJ45, Green Terminal
    Control modeDIM/CT/RGB/RGBW/RGBWY
    DIM Curve0.1~9.9
    Gray scale level8bit(256 levels)/16bit(65536 levels)
    Photoelectric IsolationYes
    Working temperature-30℃~65℃
    DimensionL169×W80×H39(mm)
    Package SizeL182×W91×H41(mm)
    Weight (G.W)450g



    Outer Size(mm):


    Multiple dimming curve ( 0.1~9.9) optional:

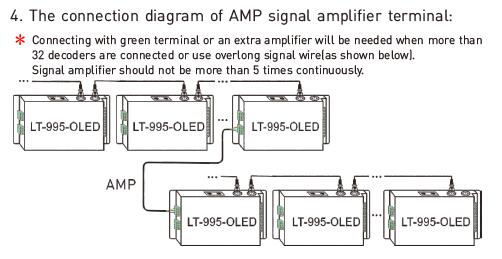

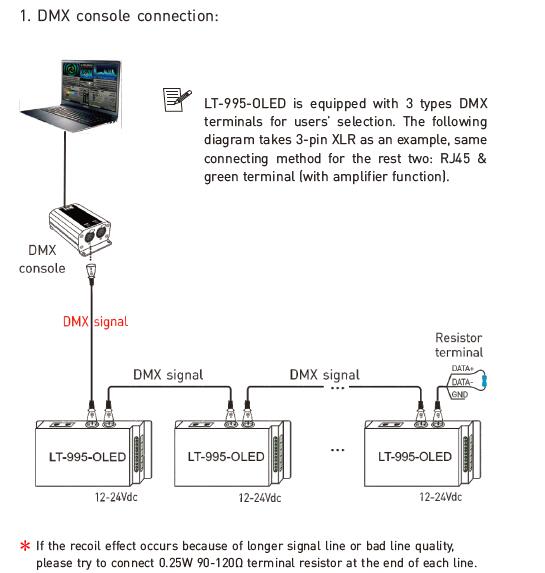

    Typical Wiring Digaram:
