5A * 5 Channels RGBWY LED Controller Constant Voltage Output DMX Decoder

Ask Lasest Price
Brand Name :	LT-SERIES
Model Number :	CL-LT-905-OLED
Certification :	FCC, CE, ROHS, ISO 9001:2008
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100000pcs per month
Delivery Time :	3~12 Days

Add to Cart

Product Details
Company Profile

5A * 5 Channels RGBWY LED Controller Constant Voltage Output DMX Decoder

CL-LT-905-OLED 5Channels Constant Voltage Output DMX Decoder for Single Color/ Color Temperature Adjustable Color/ RGB/ RGBW/ RGBWY LED Controller

Product Introduction:

Designed for Hi-power multiple channels application,5 channels output, and Max. 5A current per channel, up to 600W output power.
Easy operation with OLED screen and the touch buttons.
5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.
Support 2 kinds of DMX ports with signal isolation function:5-pin XLR,RJ45.
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
With photoelectric isolation function.
With shortcut protection and over load protection, as well as warning function when fault.
With fast self-testing function.
16bit / 8bit resolution optional.
Multiple dimming curve (0.1~9.9) optional.

Technical Specs:

nput signal	DMX512/RDM
Input voltage	DC12V～DC24V
Max load current	5A ×5CH Max. 25A
Max output power	(0~60W...120W) x5CH Max.600W
DMX512 socket	XLR-5, RJ45
Control mode	DIM/CT/RGB/RGBW/RGBWY
DIM Curve	0.1～9.9
Gray scale level	8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation	Yes
Working temperature	-30℃～65℃
Dimension	L122×W110×H37(mm)
Package Size	L125×W115×H39(mm)
Weight (G.W)	450g

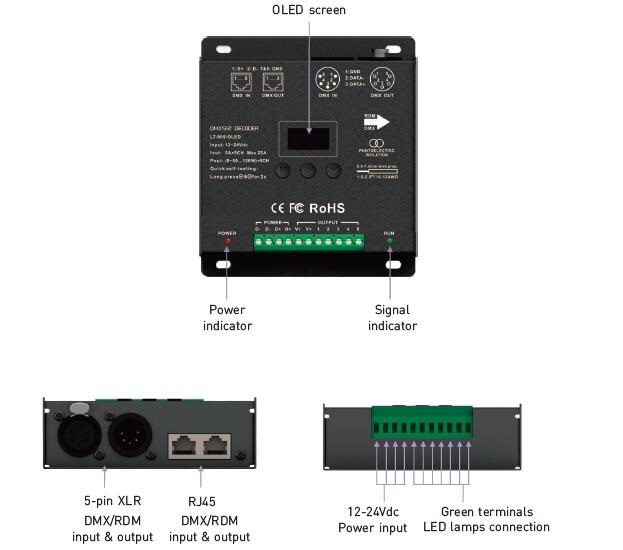

Outer Size(mm):

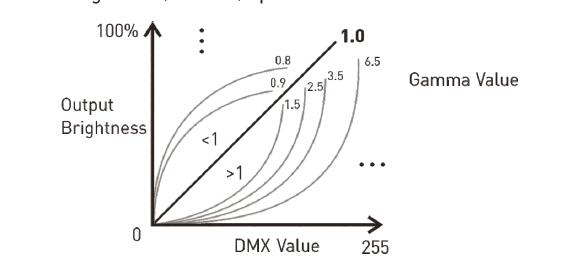

Multiple dimming curve ( 0.1~9.9) optional:

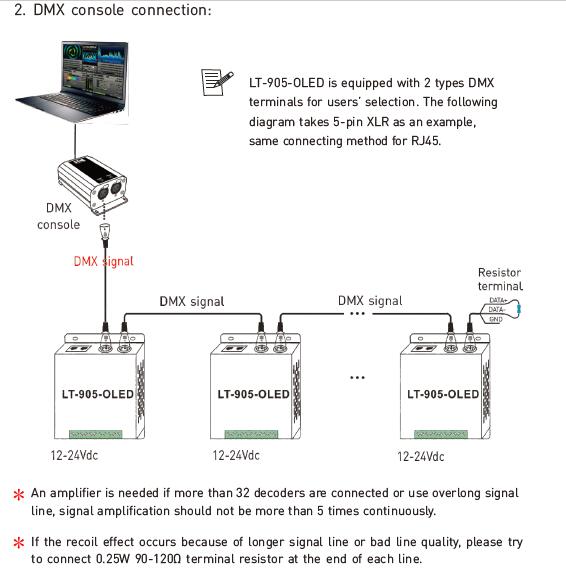

Typical Wiring Digaram:
