LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes

Ask Lasest Price
Brand Name :	LT-Series Controller
Model Number :	CL-LT800
Certification :	CE, ROHS, FCC, ISO 9001:2008
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100000pcs per month
Delivery Time :	2~15 Days

Add to Cart

Product Details
Company Profile

LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes

CL-LT800 LCD Screen DMX Master LED Controller with 580 Color Change modes and RF Remote, Controlled by Push-botton or Remote Controller, Included 110~240VAC to 12VDC Adaptor

CL-LT-800 DMX512 Controller is the output signal of international standard DMX/1990. It not only can control all the DMX LED lights in the market as long as can receiving the standard DMX signal, but also can work with our DMX Decoder to control general LED lights without DMX512 IC/Chip inside.

CL-LT-800 DMX512 Controller is easy to operate with a LCD screen. available with RF wireless control and keying control on the changing modes, speed and brightness, automatic timing and more than 580 modes for your choices.

Performance Features:

With LCD screen,easy to operate in showing all functions.
Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or holiday.
580 lighting modes such as, full 7 color, skipping synchronism, smooth synchronism, color flow, color chasing, color smooth and flow and Meteor shower trailing, etc.
Multilevel changing speed, brightness and RGB grey scale adjustment for your choices.
Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
Output with international Standard signal DMX512/1990, can control 512 DMX channels( 170 full color RGB pixels)
Support different output ports like standard XLR-3,RJ45 and Green terminal. etc.
With the functions of anti-interference and automatic breakdown recovery.

Product Parameters:

Working Voltage	DC12 (with an adapter to convert AC100-240V to DC12V, included)
Power Consumption	<2W
Output Signal	DMX512
Output Loop	1 Port
Transmission Speed	250Kbps
Change mode	580 modes
Control Quantity	512 DMX channels( 170 pixels)
Dimming range	0~100%
Working Temperature	-30℃～65℃

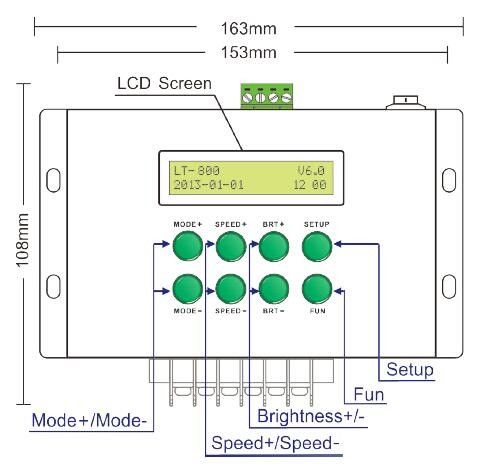

Product Dimensions	L163×W108×H40mm
Package Dimensions	L260×W132×H46mm
Weight(G.W)	760g

Typical Wiring Diagram:

1. Connect to the LED lamps with DMX chip inside:

2. Connect to the LED Lamps without DMX chip inside, it is required extra external DMX decoders

For more information or PDF Technical Specification or instructions about this DMX master controller (DMX console), please feel free to contact us separately.
