    C4FB1857 C4FB1818 RGB Dimmable Recessed Underwater LED Lights Made of SUS316 Stainless Steel Anti Corrosion

    Ask Lasest Price
    Brand Name : COMI LIGHTING
    Model Number : C4FB1857, C4FB1818(RGB)
    Certification : CE, RoHs
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000pcs per month
    Delivery Time : 3~15working days
    • Product Details
    • Company Profile

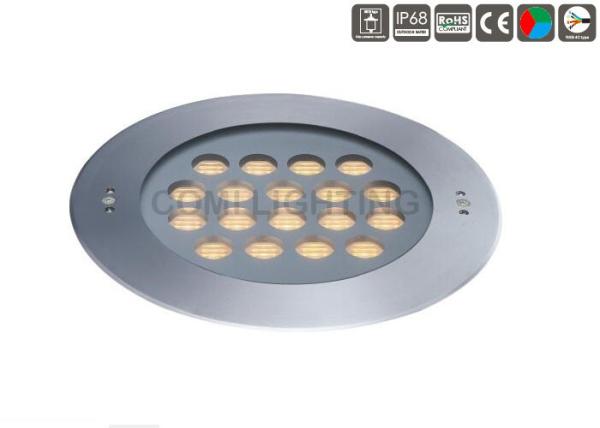

    C4FB1857 C4FB1818 RGB Dimmable Recessed Underwater LED Lights Made of SUS316 Stainless Steel Anti Corrosion

    C4FB1857, C4FB1818(RGB) 18 * 2W or 3W High Power Osram LED Dia. 250mm Asymmetrical Dimmable LED Underwater Pool Lights, Wall Recessed Pool Lamp


    Features and Benefits:

    1. 18pcs 2W Osram or 3W 3-in-1 RGB Full Color High power LED as its light source;

    2. Big size diameter 250mm front cover;

    3. High brightness output 2290-2980lm;

    4. Anticorrosion Completely stainless steel SUS 316L# moulding Housing to meet hash envirenment;

    5.Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.

    6. Built-in Radiator helps prolong lifespan of LEDs.
    7. Rated IP68 waterproof and IK10 Level, installed in water in depth less than 1meter;
    7. With PVC mounting sleeve and be easy Wall Recessed or ground recessed installation;
    8. Optic lens 45°|35°, efficiency≥85%.
    9. Asymmetrical light distribution;
    10. Dimming control way: TRIAC, 0-10V, DALI and DMX+ DMX Decoder.
    Warning:
    Must be installed underwater to prevent the light from burning up because of over-heating.
    Material Specification:
    Front Cover and HousingMolding shaped hard chromeplated stainless steel SUS 316L #
    Light WindowStep tempered glass.T=10mm
    GasketSilicone Gasket
    Optical lens45°|35° Optical lens,efficiency≥85%
    Glass pressure capacityFull area=5012kgs
    PCBExcellent heat conductivity aluminum.
    coefficient of heatConductivity≥2.0w/mk
    Cable glandIP-68 PG-11 copper with nickel-coated
    LED DriverConstant Voltage Input,
    Constant Current Output
    Power Cable

    H07RN-F 2X1.0mm² L=3.0m(Single Color);

    H07RN-F 4X0.75mm² L=3.0m(RGB)

    Application environmentTemperature of water between -20˚C~40˚C less than 1 meter depth.
    Mounting sleeveABS
    Dimmable SupportTriac PWM 1-10V Dali

    Technical Specification:

    Item No.Light sourceLens
    Degree
    (Θ 1 / 2 )
    Input
    voltage
    (V)
    Typical
    operating
    current (mA)
    Typical
    Power
    (w)
    Typical
    Luminance
    (lm)
    IK rate
    C4FB1857
    18×2W
    Single Color
    C845°|324VDC190040
    Cool white=2905
    Warm white=2298
    10
    C4FB1818
    18×2W
    3-in-1 RGB
    Full Color
    C845°|324VDC
    R=630
    G=770
    B=770
    5099010

    Notes:

    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
    2. Specification and availability are subjected to change without notice.
    3. For more detail specification in PDF, please contact us separately.
    Related Products:

    Dimensional Drawing(units:mm):
