B4XC0418 C4XC0418 4 * 3W 15W RGB 3 in 1 LED Underwater Pool Light with symmetrical or Asymmetrical light Output

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	B4XC0418(Symmetrical Light), C4XC0418(Asymmetrical Light )
Certification :	CE,RoHs,ETL, ISO9001:2008
Payment Terms :	T/T, L/C, Western Union, MoneyGram, Paypal
Delivery Time :	3~14days Working Days

Add to Cart

Product Details
Company Profile

B4XC0418 C4XC0418 4 * 3W 15W RGB 3 in 1 LED Underwater Pool Light with symmetrical or Asymmetrical light Output

B4XC0418(Symmetrical Light), C4XC0418(Asymmetrical Light ) 4*2W(or 3W) IP68 Wall Recessed LED Pool Light Completely Stainless Steel SUS 316L# Housing & Accessory, Symmetrical or Asymmetrical Light output for options, PVC Mounting Sleeve Included.

The COMI Lighting REC B4A01 IP68 LIGHT is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

●Dimmable, automatic colour change, DMX 512, DALI, 1-10 V controllable
● incl. PVC plastic mounting sleeve
● The mounting sleeve for REC IP68 LIGHT 4x 2Watts is not waterproof. The sealing must be installed on-site.
● This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).And install underwater less than 1 meter depth.

Important Notes:

*The fitting made of stainless steel with slow heat conducting must be installed underwater;

Material specifications:

Housing	Molding Stainless Steel 316# Housing
Front Cover	Stainless Steel 316#
Waterproof seal	EPDM gasket
Glass	Step tempered glass . T=10mm
Lens	All-in-one optical lens, efficiency≥85%
Cable gland	IP-68 PG-11 copper and nickel coated
Seal	Molding shaped silicon seal under the front cover Silicone glue among LED lens and PCB
Gasket	Glass and housing are silicone sealed
LED	Single color power LED
PCB	Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
Driver	Constant current output Single color LED=2-circuit output RGB 3in1 LED=4-circuit output
Application environment	Temperature of water between -20℃~40℃ ,less than 1 meter depth.
Power cable	H07RN-F 2X1.0mm^2 L=3m (for Single color) H07RN-F 4X1.0mm^2 L=3m(for RGB)
Mounting Sleeve	With PVC mounting sleeve

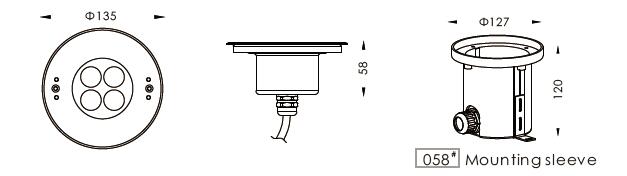

Dimensional Drawing(mm):

Symmetrical Lens Symmetrical Lens Asymmetrical Lens

General Information:

Item No.	Light source	Degree (Θ 1 / 2 )	Input voltage (V)	Typical operating current (mA)	Typical consumption (w)	Typical luminance (lm)	IK rate
B4XC0457	4×2W Single Color	30	24VDC	371	9	Cool white=595 Warm white=500	08
B4XC0418	4×3W 3-IN-1 RGB Color	25	24VDC	R=200 G=215 B=215	15	162	08
C4XC0457	4×2W Single Color	45\|35	24VDC	371	9	Cool white=595 Warm white=500	08
C4XC0418	4×3W 3-IN-1 RGB Color	45\|35	24VDC	R=200 G=215 B=215	15	162	08

Note:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately.
