Brand Name : | COMI Lighting |
Model Number : | B5AB0316(Single Color),B5AB0318(RGB) |
Certification : | CE,RoHs, ETL, SAA, ISO9001:2008 |
Payment Terms : | T/T, L/C, Western Union, MoneyGram |
Supply Ability : | 100000pcs |
Delivery Time : | 3~14working days |
Material specifications:
Housing | Molding Stainless Steel 316# Housing |
Bracket | Stainless Steel 316# |
Front Cover | Stainless Steel 316# |
Waterproof seal | EPDM gasket |
Glass | Tempered glass. T=5mm |

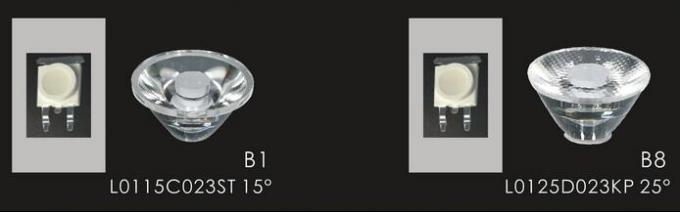

Lens | Optical lens efficiency≥85% |
Cable gland | IP-68 PG-11 copper and nickel coated |
Seal | Molding shaped silicon seal under the front cover Silicone glue among LED lens and PCB |
Gasket | Glass and housing are silicone sealed |
LED | Single color LED, Multi RGB color power LED |
PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
Driver | Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output |
Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
Power cable | H07RN-F 2X1.0mm^2 L=2m (for Single color) H07RN-F 4X1.0mm^2 L=2m(for RGB) |
Dimensional Drawing(mm):
General Information:
Item No. | Light source | Degree (Θ 1 / 2 ) | Input voltage(V) | Typical operating current (mA) | Typical consumption(w) | Typical luminance (lm) | IK rate |
B5AB0316 | 3×2W Single Color | 15 | 24VDC | 240 | 5.8 | Cool white=325 Warm white=280 | 06 |
B5AB0318 | 3×2W 3-in-1 RGB Color | 25 | 24VDC | R=70 G=124 B=124 | 7.7 | 155 | 06 |
>>
![]() |
