R5W0324 24VDC 3 * 4W Citizen COB LED IP68 Underwater Flood Spot lights with Bracket and Tripod

Completely SUS 316 stainless steel housing & accessory

Features and Benefits:

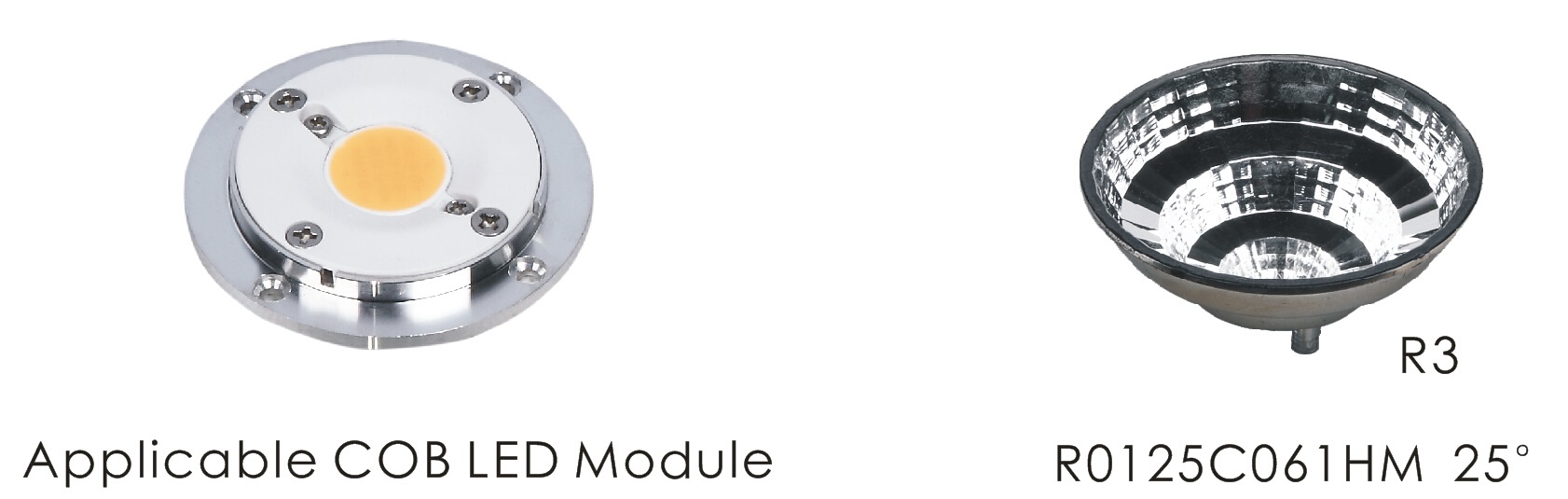

1. 3pcs 4W Citizen COB LED module as light source.

2. The perfect combination of SUS 316 stainless steel Bracket and Tripod enables the lamp can be 360degree adjustable in horizontal and vertical direction.

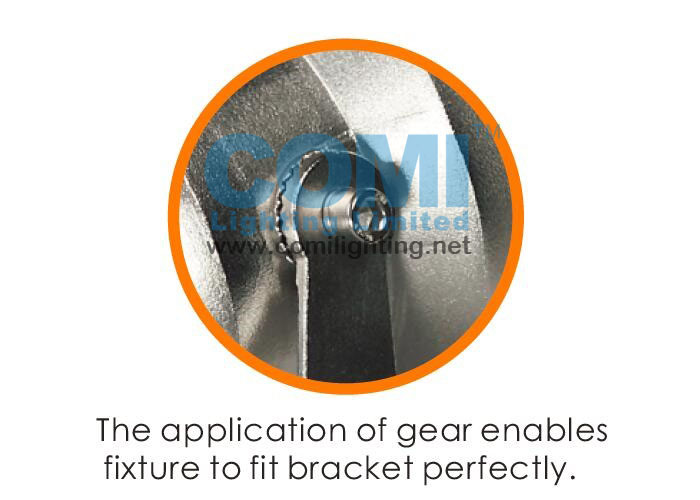

3. The application of gear enables fixture to fit bracket perfectly.

4. The fitting made of stainless steel with slow heat conducting must be installed underwater, and less than 1meter in depth.

5. Dimming options include 0-10 V , PWM protocols, DALI and etc.

6. Suitable as underwater Flood spot light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Material Specification:

Front cover&Housing: Molding shaped sus 316# stainless steel
Tripod and Bracket: Molding shaped sus 316# stainless steel
Glass: Clear tempered glass. T=5mm
Reflector: Optical Reflector efficiency≥90%
Cable gland: IP-68 PG-11 copper and nickel coated
LED: Multi chip on board LED
PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity≥3.0w/mk
Driver: Constant current output
Application environment: Temperature of water between -20℃~40℃ less than 1 meter depth.
Power cable: H07RN-F 2X1.0mm2 L=3m (for Single color)

Technical Information:

Dimensional Drawing(Unit:mm)
