B5W0916 B5W0918 24VDC 28.6W 9PCS * 2W or 3W RGB 3 in 1 LED Underwater Spot Light with Tripod

Ask Lasest Price
Brand Name :	COMI LIGHTING (HK)
Model Number :	B5W0916, B5W0918
Certification :	BV, CCC, CE, CQC ,ETL, SASO
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000pcs per month
Delivery Time :	5~15 working days

Add to Cart

Product Details
Company Profile

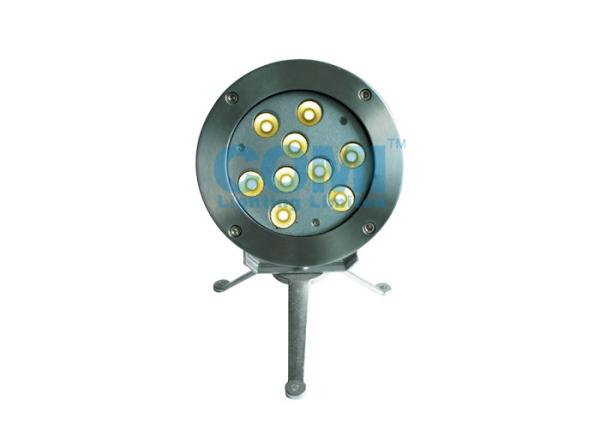

B5W0916 B5W0918 24VDC 28.6W 9PCS * 2W or 3W RGB 3 in 1 LED Underwater Spot Light with Tripod

B5W0916, B5W0918(RGB) 24VDC 9 * 2W CRI 80 IP68 316 Stainless Steel Underwater LED Fountain Spot Lights

Features and Benefits:

1. 9pcs 2W Osram or Cree LED as light source.

2. The perfect combination of SUS 316 stainless steel Bracket and Tripod enables the lamp can be 360degree adjustable in horizontal and vertical direction.

3. The application of gear enables fixture to fit bracket perfectly.

4. The fitting made of stainless steel with slow heat conducting must be installed underwater, and less than 1meter in depth.

5. Dimming options include 0-10 V , PWM protocols, DALI and etc.

6. Suitable as underwater Flood spot light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Material Specification:

Front cover&Housing	Molding shaped sus 316# stainless steel
Tripod and Bracket	Molding shaped sus 316# stainless steel
Glass	Clear tempered glass. T=5mm
Optics Lens	One-unit optical lens, efficiency≥85%
Cable gland	IP-68 PG-11 copper and nickel coated
LED	TO type power LED
PCB	Excellent heat conductivity aluminum, coefficient of heat Conductivity≥3.0w/mk
Driver	Constant current output
Application environment	Temperature of water between -20℃~40℃ less than 1 meter depth.
Power cable	H07RN-F 2X1.0mm² L=3m (for Single color) H07RN-F 4X0.75mm² L=3m (for RGB)

Technical Information:

Item No.

Light Source

Lens

Beam

Angle

Input

Voltage

(V)

Typical

Operating

Current(mA)

Typical

Power

(W)

Typical

Luminance

(lm)

IK
Rate

B5W0916

9×2W

B32

30°

24VDC

882

Cool white=820
Warm white=750

B5W0918

9×3W

3-in-1 RGB

B32

25°

24VDC

R=284
G=461
B=451

28.6

726

Note:

1. Color options: Warm White, Neutral White, Cool White, Red, Blue, Green, RGB, Or R/G/B;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately

Applications:

LED Underwater light is the perfect solution for decorative illumination water landscapes and illumination. With an IP68 waterproof grade, it is perfect for Swimming pool, ponds, fountain, aquariums, recreational facilities, decoration underwater, park lake, water stage and other outdoor place for atmosphere decoration.

Warning:
This high-power LED housing is all stainless steel, must be installed underwater
staying cold to prevent from burning too hot.

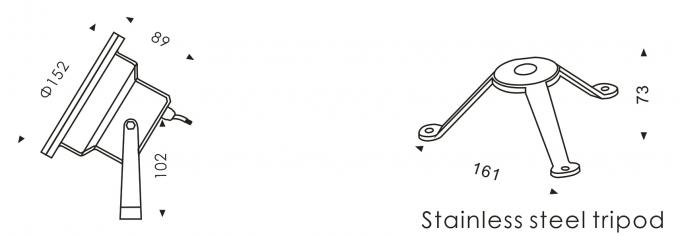

Dimensional Drawing(Unit:mm)

24VDC 3 * 4W Citizen COB LED IP68 Underwater Flood or Spot lights

24VDC 4*2W Asymmetrical LED Swimming Pool Lights with Dia. Φ150mm Front Ring

Symmetrical Lens Symmetrical Lens Asymmetrical Lens
