    20*2W 1000mm Decorative Linear LED Wall Washer Bar , LED Wall Wash Flood Light

    Ask Lasest Price
    Brand Name : COMI Lighting
    Model Number : B6QB2057,B6QC2057, B6QB2018 (RGB)
    Certification : CE, ROHS, ETL , ISO9001: 2008
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000pcs per month
    Delivery Time : 5 - 20 Working Days
    • Product Details
    • Company Profile

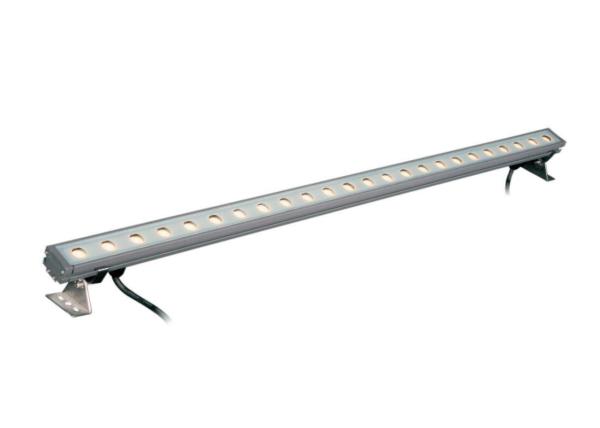

    20*2W 1000mm Decorative Linear LED Wall Washer Bar , LED Wall Wash Flood Light

    B6QB2057(24VDC), B6QC2057(110 - 240VAC), B6QB2018 (RGB, 24VDC) 1000mm 20 * 2W Single Color or 3W RGB LED Linear Wall Washer Outdoor Rated IP65 with Angle Adjustable Bracket.


    Features:

    1. This product is a high-power LED wall washer light, single color or RGB color changing are available.

    * 24VDC RGB color change need an extra RGB controller

    2. The standard input voltage can be 24VDC or 110~240VAC for options. When you install the product, please check the data label on the product and the wire.

    3. When using low voltage light fixture, please prepare powerful power supply or 24VDC output transformer. The total demand of power is according to the total power consumption+ total power of cable impedance consumption. When installation, always work with technician or install by technician.

    4. The main material of this product is made of aluminum, surface coating is only suitable for natural environment, don't install this product near the sea water or in the environment which is high salty or high acid.

    5. IP65 rating design, don't put it into water.


    Material specifications:

    HousingExtruded aluminum, powder coated
    BracketStainless steel SUS 304# T=1.5mm
    GlassTempered glass. T=4mm
    ReflectorOptical Reflector efficiency≥85%
    Cable glandIP-68 PG-9 PVC
    GasketGlass and housing are silicone sealed
    LED
    Single color NICHIA LED, Multi RGB color power LED
    PCBExcellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
    DriverConstant current output
    Operating temperature-20℃~40℃
    Power cable
    120/240V:H05RN-F 3×1.0mm² L=0.5M
    RGB 24VDC:H05RN-F 4×0.75mm² L=0.5M

    General Information:

    Item No.Light source
    Degree
    (Θ 1 / 2 )
    Input
    voltage
    (V)

    Length

    (mm)

    Typical operating
    current
    (mA)
    Typical
    consumption
    (w)
    Typical
    luminance
    (lm)
    		IK rate
    B6QB1057
    10×2W
    Single Color
    		20
    24VDC
    		500
    1041
    25
    Cool white=1476
    Warm white=1174
    		05
    B6QB1018
    10*2W
    RGB 3 in1
    Full Color
    		3024VDC500
    R=400
    G=500
    B=500
    		33.6W47905
    B6QB2057
    20×2W
    Single Color
    		20
    24VDC
    		1000
    2056
    50
    Cool white=2890
    Warm white=2308
    		05
    B6QB2018
    20×2W
    RGB 3 in1
    Full Color
    		30
    24VDC
    		1000
    R=800
    G=1000
    B=1000
    67
    956
    		05
    B6QC1057
    10×2W
    Single Color
    		20110/240V500120V=253
    240V=150    		120V=30
    240V=30    		Cool white=1476
    Warm white=1174    		05
    B6QC2057
    20×2W
    Single Color
    		20110/240V1000120V=474
    240V=250    		120V=56
    240V=56    		Cool white=2890
    Warm white=2308    		05
    Note:
    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
    2. Specification and availability are subjected to change without notice.
    3. For more detail specification in PDF, please contact us separately.

    Dimensional Drawing (mm):



    Power Cord Models and Types:
