B5AF0158 B5AF0106 3W Mini LED Underwater Spot Light With Hood , SUS 316 Stainless Steel Water Garden LED Spotlight

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	B5AF0158, B5AF0106 (RGB)
Certification :	CE, ROHS
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	3 ~ 18days

Add to Cart

Product Details
Company Profile

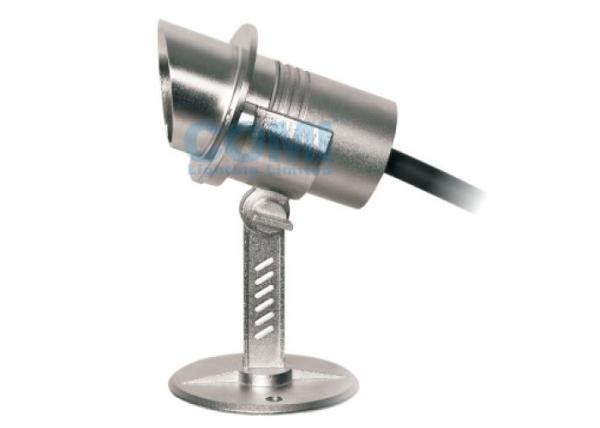

B5AF0158 B5AF0106 3W Mini LED Underwater Spot Light With Hood , SUS 316 Stainless Steel Water Garden LED Spotlight

B5AF0158, B5AF0106 (RGB) 24VDC 1piece 3W IP68 316 Stainless Steel Mini Underwater LED Spot Light with hood with bracket/support

Features and Benefits:

1. 1pcs 2W Osram or Cree LED as light source.

2. The SUS 316 stainless steel Bracket can be adjustable in vertical direction.

3. The fitting made of stainless steel with slow heat conducting must be installed underwater, and less than 1meter in depth.

4. Dimming options include 0-10 V , PWM protocols, DALI and etc.

5. Suitable as underwater Flood spot light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Material Specification:

Front cover&Housing	Molding shaped sus 316# stainless steel
Bracket	sus 316# stainless steel
Glass	Clear tempered glass. T=7mm

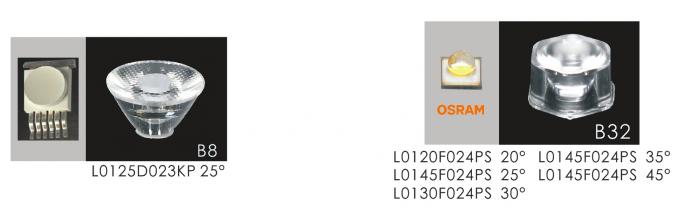

Optics Lens	One-unit optical lens, efficiency≥85%
Cable gland	IP-68 PG-11 copper and nickel coated
LED	TO type power LED
PCB	Excellent heat conductivity aluminum, coefficient of heat Conductivity≥3.0w/mk
Driver	Constant current output
Application environment	Temperature of water between -20℃~40℃ less than 1 meter depth.
Power cable	H07RN-F 2X1.0mm² L=3m (for Single color) H07RN-F 4X0.75mm² L=3m (for RGB)

Technical Information:

Item No.

Light Source

Lens

Beam

Angle

Input

Voltage

(V)

Typical

Operating

Current(mA)

Typical

Power

(W)

Typical

Luminance

(lm)

IK
Rate

B5AF0158

1×2W

B32

30°

24VDC

125

Cool white=174
Warm white=139

B5AF0106

1×3W

3-in-1 RGB

B32

25°

24VDC

R=38
G=53
B=54

3.5

R=17
G=30
B=9

Note:

1. Color options: Warm White, Neutral White, Cool White, Red, Blue, Green, RGB, Or R/G/B;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately

Applications:

LED Underwater light is the perfect solution for decorative illumination water landscapes and illumination. With an IP68 waterproof grade, it is perfect for Swimming pool, ponds, fountain, aquariums, recreational facilities, decoration underwater, park lake, water stage and other outdoor place for atmosphere decoration.

Warning:
This high-power LED housing is all stainless steel, must be installed underwater
staying cold to prevent from burning too hot.

Dimensional Drawing(Unit:mm)

Warning:
This high-power LED housing is all stainless steel, must be installed underwater
staying cold to prevent from burning too hot.
