B5AD1216 B5AD1218 12 * 2W LED Underwater Spot Light with Tripod For Swimming Pool / Ponds / Fountain 0 - 10V Dimming

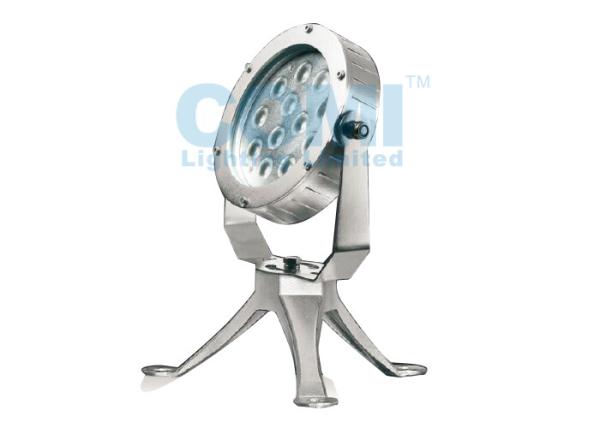

B5AD1216, B5AD1218 12* 2W 24VDC IP68 Underwater LED Pool Fountain Spot Lights in Multi Color Made of 316 Stainless Steel with bracket and tripod

LED Underwater light is the perfect solution for decorative illumination water landscapes and illumination. With an IP68 waterproof grade, it is perfect for Swimming pool, ponds, fountain, aquariums, recreational facilities, decoration underwater, park lake, water stage and other outdoor place for atmosphere decoration.

Features and Benefits:

1. Installation by SUS 316 stainless steel bracket and tripod.

2. The bracket and tripod of lamp can be horizontal and vertical direction 360degree adjustable .

3. housing is made of Completely stainless steel SUS 316# housing which has low heat conduction, it must be installed underwater.
4. Excellent design of heat conduction housing.

5. Dimming options include 0-10 V , PWM protocols, DALI, DMX+DMX decoder;

7. Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.

8. Rated IP68 Waterproof.

9. Molding shaped silicon seal under the front cover,Silicon glue among LED, lens and PCB

Material Specification:

Housing	Molding shaped SUS316 stainless steel housing
Bracket	Stainless steel sus 316#
Tripod	Stainless steel sus 316#
Front cover	Stainless steel sus 316#
Glass	Tempered glass. T=5mm
Lens	Optical lens, efficiency≥85%
Cable gland	IP-68 PG-11 copper and nickel coated
seal	Molding shaped silicon seal under the front cover,Silicon glue among LED, lens and PCB
LED	TO type power LED
PCB	Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w/mk
Power cable	H07RN-F 2X1.0mm² L=2m (for Single color), H07RN-F 4X1.0mm² L=2m (for RGB)
Application environment	Temperature of water between -20℃- 40℃ less than 1 meter depth

General Information:

Item No.

Light source

Degree

(Θ 1 / 2 )

Input

voltage

(V)

Typical

operating

current (mA)

Typical

consumption

(w)

Typical

luminance

(lm)

rate

B5AD1216

12×2W

Single Color

15°

24VDC

1040

Cool white=1210
Warm white=950

B5AD1218

12×3W

RGB Color

25°

24VDC

R=400
G=500
B=500

33.6

600

Note:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately.

3 * 2W Small Size IP68 Underwater LED Spot Light with Bracket and Tripod 360° Adjustable

Dimensional Drawing(mm):

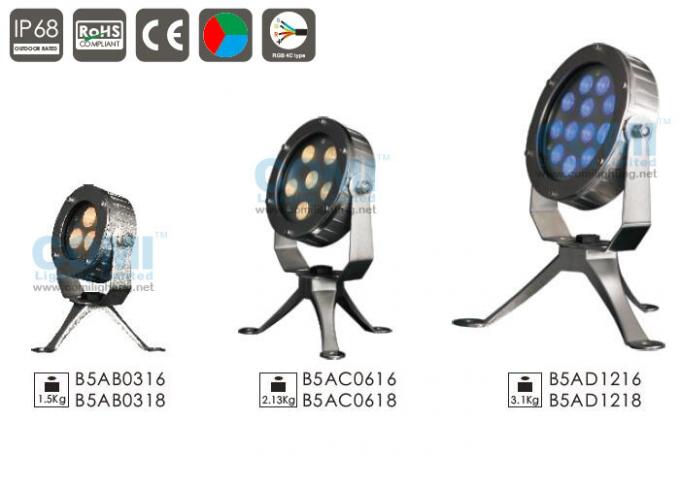

Family Products:

Item No.	Light source	Degree (Θ 1 / 2 )	Input voltage(V)	Typical operating current (mA)	Typical consumption(w)	Typical luminance (lm)	IK rate
B5AB0316	3×2W Single Color	15	24VDC	240	5.8	CW=325 WW=280	06
B5AB0318	3×2W 3-in-1 RGB Color	25	24VDC	R=70 G=124 B=124	7.7	155	06
B5AC0616	6×2W Single Color	15	24VDC	600	14.4	CW=745 WW=576	06
B5AC0618	6×2W 3-in-1 RGB Color	25	24VDC	R=200 G=260 B=260	17.3	300	06
B5AD1216	12×2W Single Color	15	24VDC	1040	25	CW=1210 WW=950	06
B5AD1218	12×2W 3-in-1 RGB Color	25	24VDC	R=400 G=500 B=500	33.6	600	06
