CL-SS5050RGBWW84-P1-HO Series-A 12V High Brightness Output IP20
Nonwaterproof 5050 RGB + Warm White flexible LED strip Lights CRI
> 80 20 - 25LM / LED ; CE, ROHS, UL ,ETL, REACH, SAA, TUV
certificates
Class-A series 5050 RGBW LED tape light is a perfect and
professional grade low profile and seamless lighting solution for
your LED linear lighting demands, this dimmable, energy saving,
simplified installation and very low profile LED linear tape light
is excellent for use in many discreet locations and architectural
enhancements, letter sign, coving, under/above cabinet, back
lighting, luxury residential & commercial spaces.
Features and Benefits:
● LED Source: Epistar chips 5050SMD LED, 84LEDs/m (42pcs RGB +
42pcs warm white);
● Lumen output: 20~25lm/LED (for white color);
● Materials for LED: Epistar LED chips, Mitsubishi phosphor powder,
0.9mil gold thread with 99.99% purity ;
● Power: Max. 20W/m;
● Standard CRI80+ (for white color);
● May be field cut every 6LEDs for 12V or 12LEDs for 24V at regular
intervals without damage the rest of ribbon
● Simplified installation with 3M self-adhesive tape on the back of
LED strip
● Smooth and Continuous ELV dimming with Electronic Low Voltage
dimmer
● Strict binning controls provide consistent LED color and quality
of Light
● LED lifetime: 70% Maintenance @ 30,000 Hour(s)
● Size: standard Length 5meters/reel , L5000 * W14 * H2 mm
● View Angle: 120degree
● IP Rating options: Standard IP20, Options: IP65, IP67,IP68
● Custom made is available
General Information:
| Part Number | Color | LED Type | LED No. | Operating Voltage | Power
(W/m) | Luminous Flux
(lm/LED) | FPC width
(mm) | IP Rating |
| CL-SS5050RGBWW84-P1 | RGB+ Warm White | 5050 LED | 84LEDs/m | 12VDC | Max. 20W/m | 20~25lm/LED
(White color only) | 14mm | IP20 |
| CL-SS5050RGBNW84-P1 | RGB+ Neutral White | 5050 LED | 84LEDs/m | 12VDC | Max. 20W/m | 20~25lm/LED
(White color only) | 14mm | IP20 |
| CL-SS5050RGBCW84-P1 | RGB+ Cool White | 5050 LED | 84LEDs/m | 12VDC | Max. 20W/m | 20~25lm/LED
(White color only) | 14mm | IP20 |
Notes:
1."XX" in part number stands for the LED emitting color,Kelvin or
Wave length for above LED emitting color:
(1) Warm white (WW, 3000~3500K[standard] or 2500~3000K), Neutral
White (NW, 4000~4500K), Cool White (CW, 6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm),
Yellow (YL, 588~592nm);
2.CRI>70,80 or 90+ are available;
3.Specification and availability are subjected to change without
notice；
4. For rating IP65,IP67,IP68 versions , please inquire us
separately.(what is name methods for difference IP rating LED
Strip in COMI Lighting? View
More)

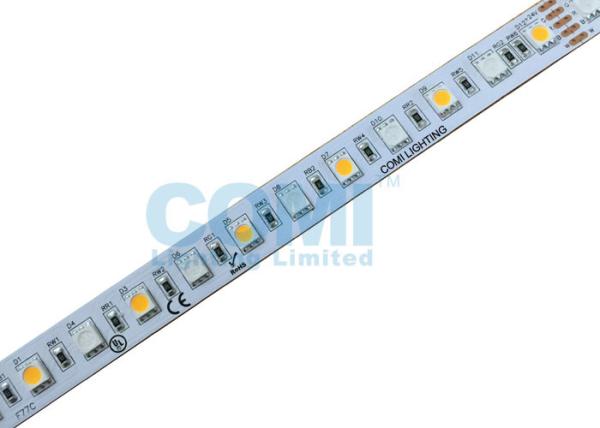

High Output 5050 RGBW LED Strip Light 84LEDs/M, There is also 24VDC
working 72LEDs/M available.
