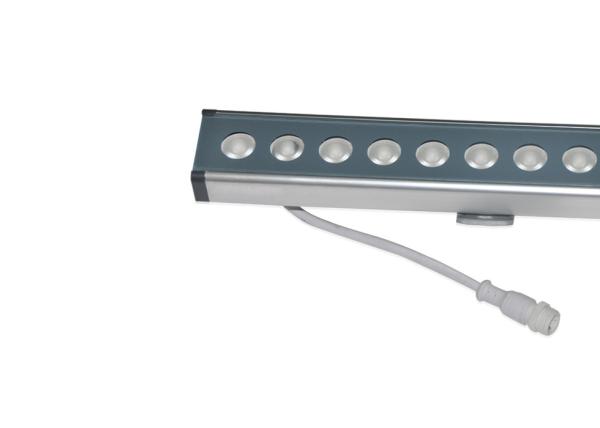

CL-WW5027-30-XX 5027-Series 30W Single Color or RGB Color 1000mm
30pcs * 1W 3030SMD LED Linear Wall Washer Light Up to 2500LM
Outdoor Rating IP65 Waterproof
The compact yet powerful Armer™ Wall Washer Light 5030-Series LED
Wall Washer features Compressed Mechanical seal and Nano Film
Waterproof Breathable Plug to make the air pressure balance between
the internal and external of lamp body and solve the mist and
waterproof issue. The fixture uses high-intensity top grade high
power LEDs, optical-grade PMMA lens and advanced heat dissipation
mechanism anodized aluminum extrusion to provide exceptional
photometric performance, energy efficiency and longevity. With a
wide range of color consisting of warm white, natural white cool
white and RGB to illuminate interior walls, exterior facades and
unique architectural details with a rich, even wash or graze
effect,and IP65 rated waterproof design, enables5633-Series Wall
Washer is ideal linear lighting solution choice for most
sophisticated, concentrated bright light output in both interior
and exterior environments.
Features and Benefits:
1. With Strong impact resistance 5mm thickness tempered glass
cover;
2. Utilizes Compressed Mechanical seal technology and Air pressure
balance Nano Film Waterproof Breathable Plug to solve the
waterproof/protection problem caused by thermal expansion and
contraction.
Note:
Thermal expansion and contraction cause pressure difference btween
internal and external of the lamp body,mist in interior lamp body
and the waterproof problem and etc.Compressed Mechanical seal
technology and Air pressure balance thread plug is to solve this
basic problem of the outdoor wall washer.
3. IP65 Rated design suitable for indoor and outdoor facade
illumination and installation :
Designed to accommodate both interior and exterior environments
where a rich, even wash is necessary.
4. Advanced heat dissipation mechanism:
The internal heat management system for LED washer light enables
the fixture with a higher stability and longer LED lifetime under
-20℃~to 50℃ working temperature.
5. Dimmable and worked with DMX:
(1) This mini wall washer can be dimmable with LED Dimming
Controller(s) ;
(2) RGB version Work with DMX controller emits colorful lighting
changing effect Over 16 million possible colors with red, green and
blue LEDs;
Material specifications:
| Housing | Aluminum die cast, powder coated or anodic oxidation Silver or
Black treatment |
| Bracket | Aluminum die cast |
| Glass | Tempered glass. T=5mm |
| Reflector | Optical Reflector efficiency≥90% |
| Cable gland | IP-68 PG-9 PVC |
| Gasket | Glass and housing are silicone sealed |
| LED | High Power SMD3030 1W LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat
Conductivity≥2.0w/mk |
| Driver | Without Driver |
| Waterproofing treatments | Structure protection Compressed Mechanical seal and Air pressure balance Nano Film
Waterproof Breathable Plug |
| Length | Standard Length 1000mm, other lengths can be available |
| Body Color | Natural oxidation, Anodized Silver or Black |
| Operating temperature | -20℃~40℃ |
| Power cable | Single Color: H05RN-F 2×1.0mm2 RGB: H05RN-F 4×0.5mm2 |
General Information(For 1000mm Length only):
| Item No. | Color | Light source | Degree (Θ 1 / 2 ) | Input voltage (V) | Typical operating current (mA) | Typical consumption (w) | Typical luminance (lm) | IK rate |
| B6F3035 | Single Color | 30×1W | 30° | 12VDC or 24VDC | 12V=2500 24V=1250 | 30W | CW=2450 WW=1960 | 02 |
| B6F3004 | RGB (10R/10G/10B) | 30×1W | 30° | 12VDC | 2500 | 30W | / | 02 |
Note:
1. Color options: Warm White, Neutral White, Cool White, Red,
Green, Blue,RGB and etc;
2. Specification and availability are subjected to change without
notice.
3. Lens type: round lens(Round symmetrical light distribution) or ellipse(ellipse Asymmetrical light distribution)
4. For more detail specification in PDF, please contact us
separately.
5. Lenth, LED quantity, working voltage, control way ,
Kelvin&Color and etc can be customize made.
Dimensional Drawing:
